Diagnostic Imaging



Diagnostic imaging is an essential component of the diagnostic work-up of many cases. In many instances, a combination of imaging techniques is required. We have available a range of up-to-date imaging equipment including x-ray generators and digital radiograpgy equipment, a number of different ultrasound machines, a variety of video-endoscopes, a gamma camera (for nuclear scintigraphy), CT (Computed Tomography) and MRI systems. In addition to our first class equipment, we have a number of experienced specialists in imaging that help with the interpretation of the images we obtain.

We are proud to have been at the forefront of developing the equine standing MRI for the diagnosis of certain types of lameness in the lower limb, and we were the first veterinary clinic in the world to install the first standing equine MRI scanner. Our ongoing research and work with MRI scanning has resulted in the publication of numerous scientific articles (see publications).


Diagnostic imaging is an essential component of the diagnostic work-up of many cases. In many instances, a combination of imaging techniques is required. We have available a range of up-to-date imaging equipment including X-ray generators and digital radiography equipment, a number of different ultrasound machines, a variety of video-endoscopes, a gamma camera (for nuclear scintigraphy), CT (Computed Tomography) and MRI systems. In addition to our first class equipment, we have a number of experienced specialists in imaging that help with the interpretation of the images we obtain.

We are proud to have been at the forefront of developing the equine standing MRI for the diagnosis of certain types of lameness in the lower limb, and we were the first veterinary clinic in the world to install the first standing equine MRI scanner. Our ongoing research and work with MRI scanning has resulted in the publication of numerous scientific articles (see publications).

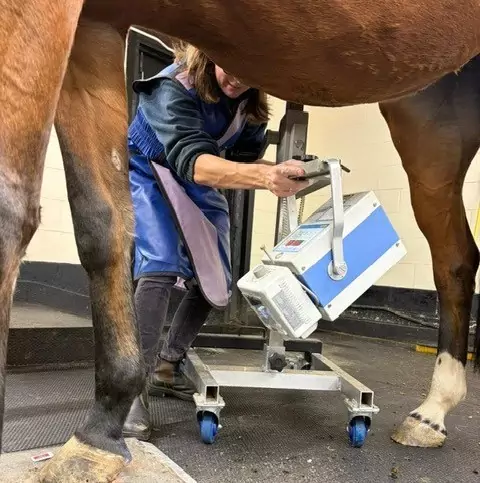

Radiography

The clinic currently has four X-ray generator units, including a powerful gantry-mounted unit. These allow us to obtain radiographs of high diagnostic quality of most parts of the horse’s body, including the upper limbs, neck and chest. Our state-of-the-art digital radiography systems permit detailed image manipulation, thereby increasing the diagnostic value over conventional film-based radiography.


Ultrasonography

We currently have eight diagnostic ultrasound machines that have specialised probes and indications depending on which part of the horse we are imaging which allows a complete range of ultrasound examinations to be performed.  These include probes and machines specifically designed for certain indications, ranging from small, high resolution imaging of tendons, ligaments, eyes and larynges, to deep penetrating imaging of hearts and intestines, as well as the ability to measure blood flow using doppler.

Ultrasound examinations are a major and valuable part of the investigation of horses affected by many orthopaedic diseases (e.g. tendon and ligament damage, joint evaluation, some fractures, back diseases, etc.), abdominal diseases (e.g. colics, abdominal tumours, weight loss cases, liver diseases, etc.), thoracic diseases (e.g. heart conditions, pleurisy, etc.), and gynaecological conditions (e.g. pregnancy diagnosis, pre-breeding checks and routine monitoring for A.I., ovarian abnormalities, etc.). Ultrasound guidance is commonly used for the precise and safe biopsy of the liver, kidney and other internal structures.


Nuclear Scintigraphy

Nuclear scintigraphy, or bone scanning, is performed on over 100 horses per annum, usually as a part of a lameness evaluation, but also in some cases as a part of the evaluation of neurological or other conditions. This imaging modality gives an overview of bone turnover in the area imaged and is incredibly sensitive for detecting even subtle changes in bony turnover to help localise skeletal abnormalities. We have a GE Medical Starport gamma camera mounted on an overhead gantry that permits imaging of the entire horse. The horse is injected with a special radioactive dye that binds to bone. After a few hours have passed allowing the dye to bind to the bone, the camera that detects the gamma radiation is used to scan the horse and generates images, thereby giving information about bone turnover. Horses undergoing this examination need to be hospitalised for at least 48 hours following an injection with the radioactive drug.

For further information about nuclear scintigraphy, see the section on SCINTIGRAPHY under 'Useful Info'.


MRI

Bell Equine was the first equine clinic in the world to install a MRI (magnetic resonance imaging) scanner capable of imaging the limbs of a standing horse. The first scanner was installed here in 2002, and since then we have undertaken important evaluations of the system to continue to improve our image quality and scan higher up the limbs, and have collaborated with workers in a number of institutions around the world.

MRI allows the detailed examination of the different structures of the lower limb, and is particularly useful in the evaluation of diseases of the foot. It yields in depth images of the anatomy including both the bone and the soft tissues. Images can be acquired in any plane to focus in on one area without superimposition of other structures. Our investigations have and continue to provide important and new information about many diseases of the foot, including the so-called "navicular disease". The procedure can also provide valuable information about more proximal areas of the limbs, such as the fetlock, knee and suspensory ligament.

After making sure there is no metal (or metal fragments from shoes or clenches) in the area to be imaged, the horse is taken to a specialised room for MRI. The room is shielded from all radiofrequencies which would otherwise ruin the images. The area to be imaged is placed within the C-shaped magnet with the horse standing and a 'radiofrequency coil' which sends and receives signal, is placed around the limb. A variety of different sequences are obtained, each of which take several minutes. Images are of the best quality if the horse stands still while each sequence is obtained, but the horse can move between sequences. Once all the images are obtained and the horse has recovered from the sedation, they are discharged from the clinic. The whole procedure normally takes approximately 4 hours but is variable depending on the area(s) imaged and how still we can keep the horse.

For further information about MRI, see the section on MRI under 'Useful Info'.




CT (Computed Tomography)

CT (Computed Tomography) is an imaging technique that uses a rotating x-ray machine and a computer to create cross-sectional slices through the body. Our CT scanner is one of only a few in the country able to acquire studies of equine heads in standing patients (thereby eliminating the need and risks of general anaesthesia).  The CT scanner is particularly useful for investigating and diagnosing dental diseases as well as conditions affecting the sinuses, brain and skull. The image slices generated by the CT scanner are significantly clearer than traditional X-rays, allowing more accurate diagnosis and help with surgical planning. The CT scanner can also be used to image the lower legs, but in order to do this the horse needs to be imaged under general anaesthesia.

In order to scan a standing animal, the horse is sedated and stands on a moving platform that moves the head through the doughnut-shaped scanner. The scanner contains an X-ray tube that rotates around the horse’s head as it travels through the scanner. In this way, detailed X-ray images are produced in the form of thin slices through the head. Specialised software is used to manipulate the images so slices can be formed in any plane and the 3D structure can be reconstructed. The CT scan produces images of structures inside the head, including the teeth, sinuses, brain, blood vessels, bones and tumours. CT scans are particularly helpful in evaluating horses with, among others, dental abnormalities, sinus problems, headshaking, neurological diseases and head trauma.

For further information about CT imaging, see the section on CT under 'Useful Info'.
